Double Pith Chain With Burring Attachments
This chain has a burred and tapped attachment. It allows easy installation of slats.
Standard attachment：A-1 attachment, A-2 attachment, K-1 attachment, K-2 attachment
Chain number：KCM C2040～C2080H, KCM C2042～C2082H
Double Pith Chain With Burring Attachments

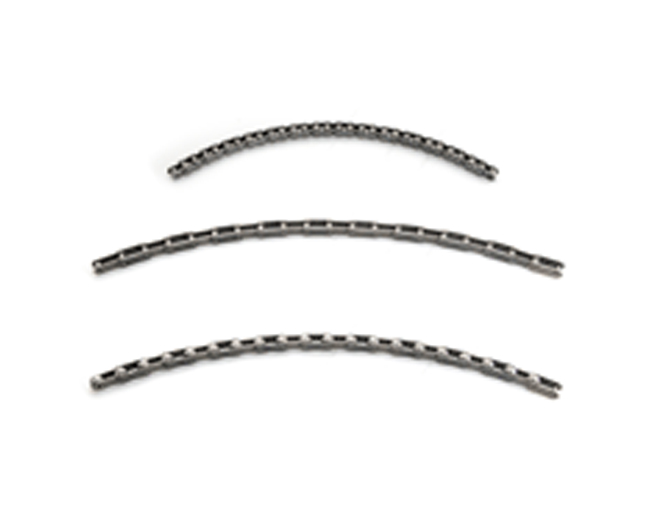

Side Bow (SB) Chain
This chain becomes laterally bowed. It can make curvilinear motions easily using standard sprockets.
This chain can be used for driving a curved roller conveyor or for a curved transportation conveyor by installing its attachment.
Chain number
Roller chain type：KCM 40 SB～80 SB
Double pitch chain type：
S roller type： KCM C2040 SB～C2080H SB
R roller type： KCM C2042 SB～C2082H SB
This chain can be used for driving a curved roller conveyor or for a curved transportation conveyor by installing its attachment.
Chain number
Roller chain type：KCM 40 SB～80 SB
Double pitch chain type：
S roller type： KCM C2040 SB～C2080H SB
R roller type： KCM C2042 SB～C2082H SB
Side Bow (SB) Chain

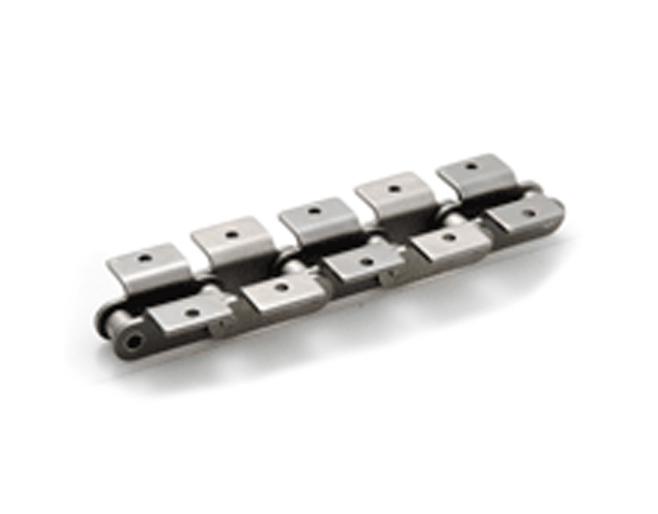

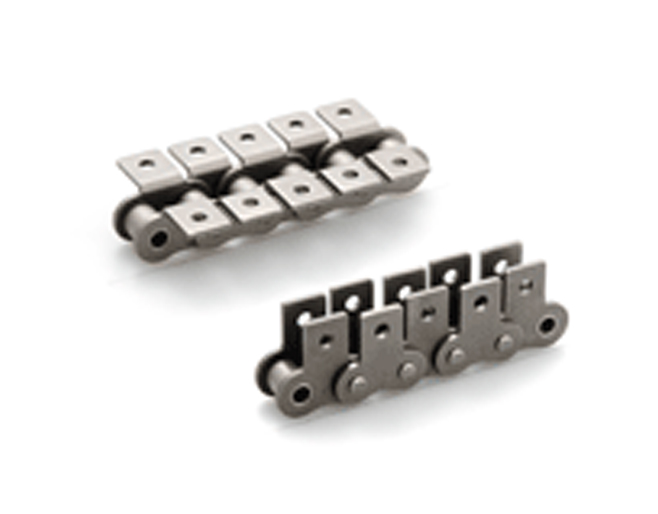

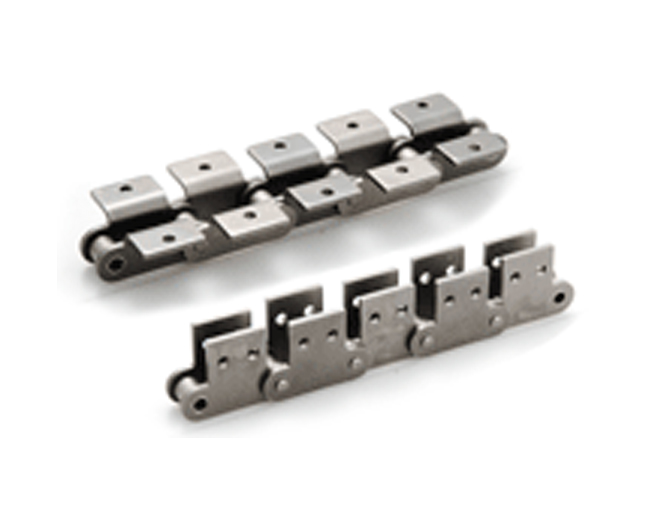

Roller Chain With Attachments (A & K type)
This is a precisely processed roller chain with attachments. This chain is the optimum choice to use for high precision transmission with small pitch for a small conveyor.
Standard attachment：
A-1 attachment・K-1 attachment・SA-1 attachment・SK-1 attachment
Chain number：KCM 25, 35, 40, 50, 60, 80, 100, 120
Wide attachment：WA-1, WA-2 attachment・WK-1, WK-2 attachment・WSA-1, WSA-2 attachment・WSK-1, WSK-2 attachment
Chain number：KCM 40, 50, 60, 80
Standard attachment：
A-1 attachment・K-1 attachment・SA-1 attachment・SK-1 attachment
Chain number：KCM 25, 35, 40, 50, 60, 80, 100, 120
Wide attachment：WA-1, WA-2 attachment・WK-1, WK-2 attachment・WSA-1, WSA-2 attachment・WSK-1, WSK-2 attachment
Chain number：KCM 40, 50, 60, 80

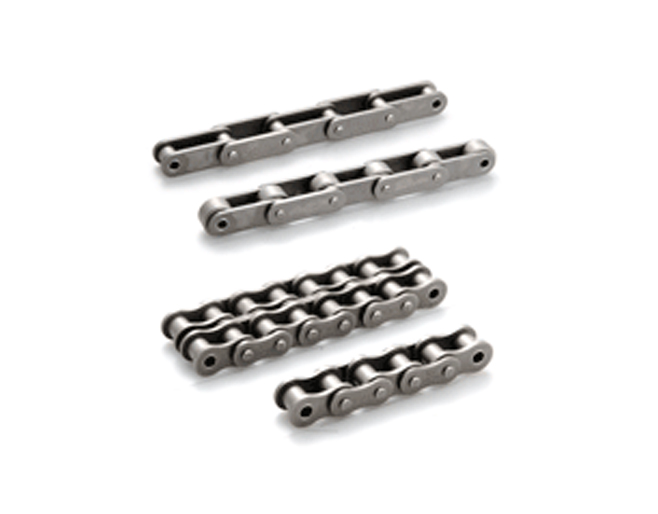

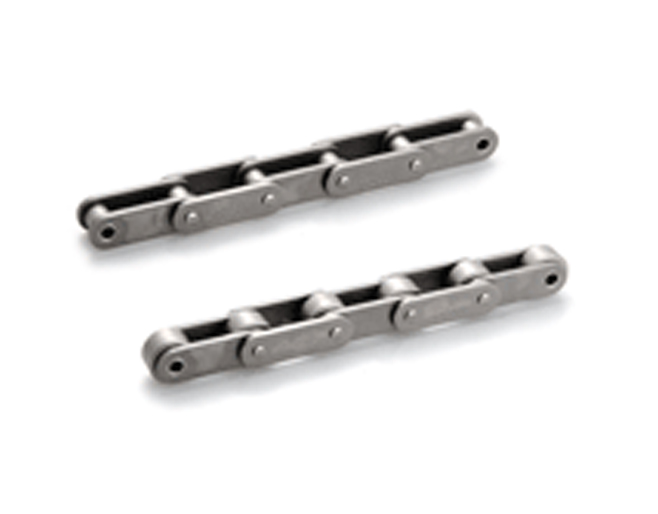

Double-Pitch Roller Chain For Conveyor (Standard)
Double-pitch chain for conveyor has two roller types: S-type (the end of bearing number is 0) and R-type (the end of bearing number is 2). This product can be used as a small high-precision conveyor by installing various standardized attachments to it. Nickel-plated and stainless steel versions are also available..
Chain number：KCM C2040～C2120H、KCM C2042～C2122H
Double-Pitch Roller Chain For Conveyor (Standard)

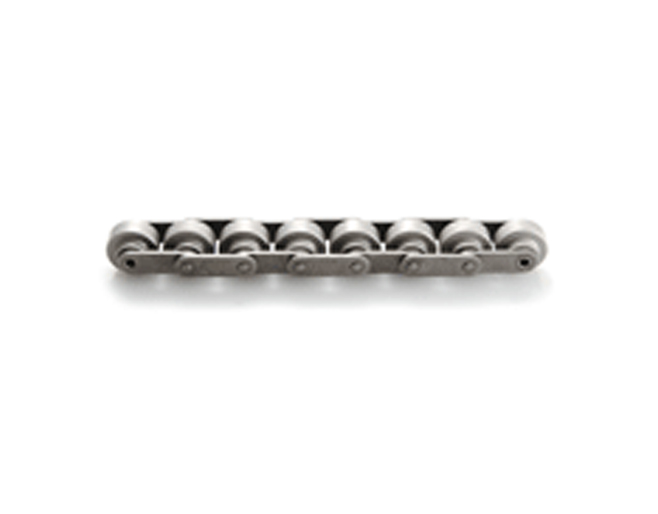

Chain With Top Rollers (TR)
This chain has transportation rollers attached on the top center of its chain pitch and can transport and accumulate materials as chains with side rollers do.
The materials of those top rollers include resin and rubber tire as well as standard steel as for the side roller.
In case the installation interval for the top rollers is 1P
In case the installation interval for the top rollers is 2P
Chain number：KCM 40, 50, 60, 80, 100
Chain number：KCM C2040～C2100H, KCM C2042～C2102H
The materials of those top rollers include resin and rubber tire as well as standard steel as for the side roller.
In case the installation interval for the top rollers is 1P
In case the installation interval for the top rollers is 2P
Chain number：KCM 40, 50, 60, 80, 100
Chain number：KCM C2040～C2100H, KCM C2042～C2102H
Chain With Top Rollers (TR)

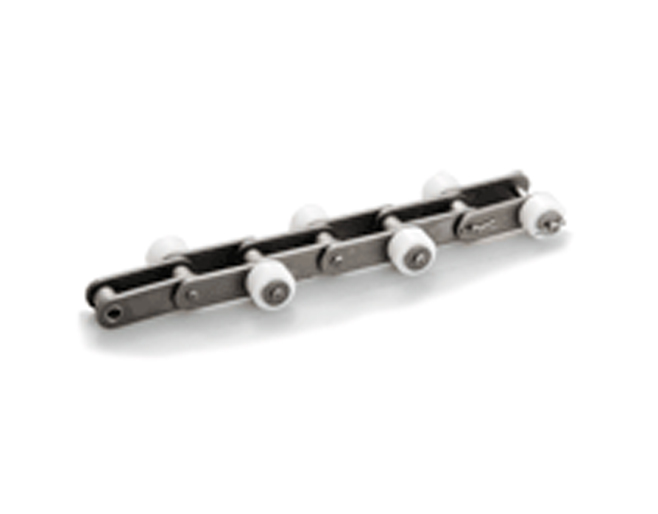

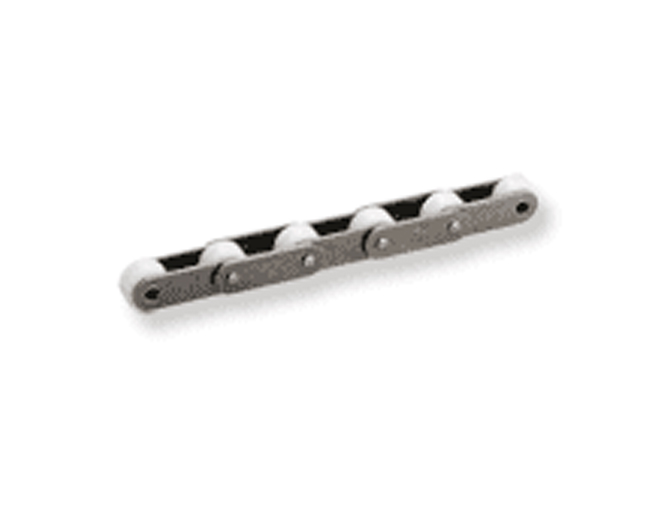

Carrier Roller Chain (CY)
This is a new type of free flow chain replacing the top roller type. The position of its transportation rollers on its pitch line allows for more stable transportation than the top roller type.
Please select the roller material from plastic (DN), conductive engineering plastic (DNC), or steel (HS) according to the loading condition.
Vhain number
Career roller chain：KCM CY2030 (DN・DNC・HS) ～CY2060 (DN・DNC・HS)
Please select the roller material from plastic (DN), conductive engineering plastic (DNC), or steel (HS) according to the loading condition.
Vhain number
Career roller chain：KCM CY2030 (DN・DNC・HS) ～CY2060 (DN・DNC・HS)
Carrier Roller Chain (CY)
Double-Pitch Stainless Steel (SS) Chain
SUS304 (18Cr-8Ni) austenitic stainless steel is used for all the parts of this chain. It is appropriate to an environment that requires heat-resistance (-20 to 400ﾟC), corrosion-resistance, and aesthetics.
Note: KCM stainless double-pitch chain has slight magnetism because it has been cold worked.
Chain number
Stainless(SOS) double pitch chain: KCM C2040 SS～C2100H SS, KCM C2042 SS～C2102H SS
Note: KCM stainless double-pitch chain has slight magnetism because it has been cold worked.
Chain number
Stainless(SOS) double pitch chain: KCM C2040 SS～C2100H SS, KCM C2042 SS～C2102H SS
Double-Pitch Stainless Steel (SS) Chain
Lubrication Free Chain
XKCM lubrication free chain is a maintenance-free chain with self-lubricating capability using a special oil-impregnating bush.
Please use this product at a location where oil impregnation is not preferable or in-service oil impregnation is difficult.
* NL: Its rollers enable smooth mesh with sprockets.
* Nickel-plated version and a variety of attachments are also available.
* Use this chain at the chain velocity of 150m/min or lower.
* Should be used in the range of common operating temperatures (-10ﾟC to +150ﾟC).
Chain number
NL Double pitch chain： KCM C2040 NL～C2080NL, KCM C2042 NL～C2082 NL
NL roller chain：KCM C40 NL～C80NL
NL oval type roller chain：KCM C40 FNL～C80 FNL
KCM 40NL, 50NL, 60NL, 80NL
Please use this product at a location where oil impregnation is not preferable or in-service oil impregnation is difficult.
* NL: Its rollers enable smooth mesh with sprockets.
* Nickel-plated version and a variety of attachments are also available.
* Use this chain at the chain velocity of 150m/min or lower.
* Should be used in the range of common operating temperatures (-10ﾟC to +150ﾟC).
Chain number
NL Double pitch chain： KCM C2040 NL～C2080NL, KCM C2042 NL～C2082 NL
NL roller chain：KCM C40 NL～C80NL
NL oval type roller chain：KCM C40 FNL～C80 FNL
KCM 40NL, 50NL, 60NL, 80NL
Lubrication Free Chain

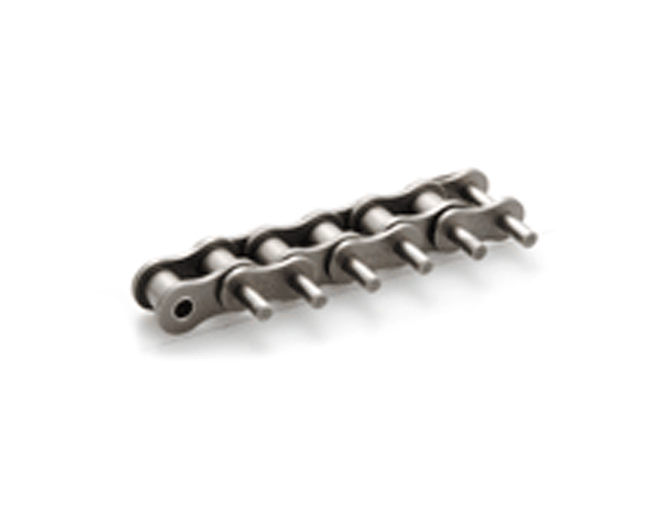

Roller Chain With Attachments (EP type)
The pin attachment of this chain has been extended.
EP attachment:
Direct the EP attachments inward, make the two chains parallel, and attach the pipe and hardware to those attachments before using the chain.
Chain number：KCM 40, 50, 60, 80, 100, 120, 140, 160
EP attachment:
Direct the EP attachments inward, make the two chains parallel, and attach the pipe and hardware to those attachments before using the chain.
Chain number：KCM 40, 50, 60, 80, 100, 120, 140, 160
Roller Chain With Attachments (EP type)

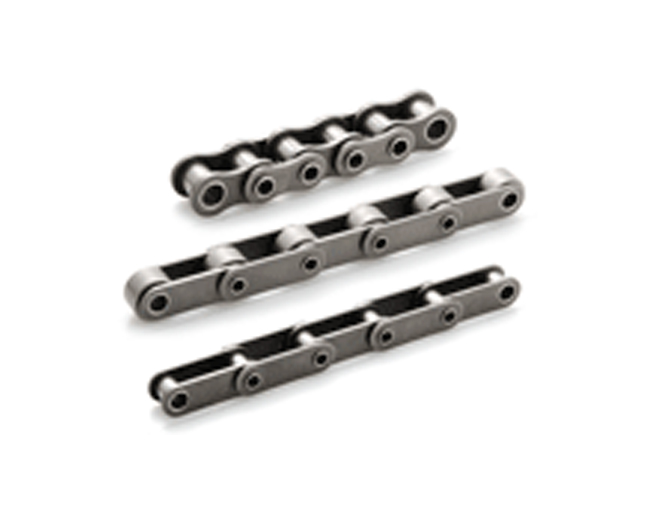

Hollow Pin Chain
In this chain, each component is mutually connected by a hollow pin. The use of hollow pin enables easy installation of attachments.
The stainless and various surface-treated versions are also available.
The sprockets dedicated to standard and double-pitch chains can be used for this type of chain.
Chain number
Roller chain type：KCM 40 HP～80 HP
Double pitch chain type：
S roller type (bushed type)： KCM C2040 HP～C2080 HP
R roller type： KCM C2042 HP～C2082 HP
The stainless and various surface-treated versions are also available.
The sprockets dedicated to standard and double-pitch chains can be used for this type of chain.
Chain number
Roller chain type：KCM 40 HP～80 HP
Double pitch chain type：
S roller type (bushed type)： KCM C2040 HP～C2080 HP
R roller type： KCM C2042 HP～C2082 HP
Hollow Pin Chain
Stainless Steel (SOS) Unlubricated Chain
Features of SOS Chain
Oil impregnation is not needed.
* Clean operating environment can be maintained without contaminating the unit through oil impregnation. (*1)(*2)
* Since NSF-H1 registered lubrication oil (applicable to any location where accidental contacts with foods are expected) is used, the chain can be safely used for food processing machinery. Products with industrial lubrication oil impregnated are also available. This chain is compatible with standard roller chains and accepts standard attachments.
* Standard sprockets can be used for a multiple strand chain as well as a single strand chain.
* The chain itself can be used in a low to high temperature range (-20ﾟC to 400ﾟC). (*3)
Note:
*1. Unless there are some problems in the use of stainless steel chain, lubricate it before using it.
*2. Do not use under complete oil-free condition.
*3. To bring out the best performance of its oil-impregnated bush, use this chain in the temperature range of -10ﾟC to 250ﾟC.
*The bush may wear out rapidly in a dusty environment. In addition, water splashing environment and higher temperatures make oil distill more easily from the oil-impregnated bush and reduce its life.
Chain number
Stainless(SOS) chain: KCM C40 SOS～C80 SOS, KCM C2040 SOS～C2080 SOS, KCM C2042 SOS～C2082 SOS
Oil impregnation is not needed.
* Clean operating environment can be maintained without contaminating the unit through oil impregnation. (*1)(*2)
* Since NSF-H1 registered lubrication oil (applicable to any location where accidental contacts with foods are expected) is used, the chain can be safely used for food processing machinery. Products with industrial lubrication oil impregnated are also available. This chain is compatible with standard roller chains and accepts standard attachments.
* Standard sprockets can be used for a multiple strand chain as well as a single strand chain.
* The chain itself can be used in a low to high temperature range (-20ﾟC to 400ﾟC). (*3)
Note:
*1. Unless there are some problems in the use of stainless steel chain, lubricate it before using it.
*2. Do not use under complete oil-free condition.
*3. To bring out the best performance of its oil-impregnated bush, use this chain in the temperature range of -10ﾟC to 250ﾟC.
*The bush may wear out rapidly in a dusty environment. In addition, water splashing environment and higher temperatures make oil distill more easily from the oil-impregnated bush and reduce its life.
Chain number
Stainless(SOS) chain: KCM C40 SOS～C80 SOS, KCM C2040 SOS～C2080 SOS, KCM C2042 SOS～C2082 SOS
Stainless Steel (SOS) Unlubricated Chain
Triple Speed Chain (CZ)
The special roller structure of this chain only requires approximately 1/2.5 velocity of chain compared to that of its pallet velocity. Therefore, this is the optimum choice for a line requiring quietness in running. In addition, since it has a excellent starting responsibility after accumulation compared to a common free flow chain, it is the best choice for an assembly line that repeats transportation and stagnation.
Select a roller material appropriate to the loading condition as for carrier chains.
There are several materials for roller available such as engineering plastic for low load (DP), conductive engineering plastic for low load (DPC), engineering plastic for middle load (DN), conductive engineering plastic for middle load (DNC), and steel for high load (HS).
Chain number
Triple speed chain：KCM CZ2030 (DP・DPC・DN・DNC・HS) ～CZ2060 (DP・DPC・DN・DNC・HS)
Select a roller material appropriate to the loading condition as for carrier chains.
There are several materials for roller available such as engineering plastic for low load (DP), conductive engineering plastic for low load (DPC), engineering plastic for middle load (DN), conductive engineering plastic for middle load (DNC), and steel for high load (HS).
Chain number
Triple speed chain：KCM CZ2030 (DP・DPC・DN・DNC・HS) ～CZ2060 (DP・DPC・DN・DNC・HS)
Triple Speed Chain (CZ)

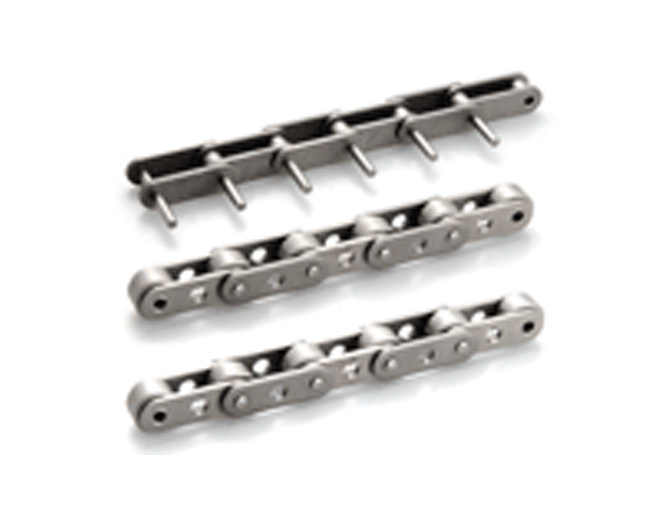

Double-Pitch Roller Chain With Attachments (EP & G type)
The pin attachment of this chain has been extended.
EP attachment:
Direct the EP attachments inward, make the two chains parallel, and attach the pipe and hardware to those attachments before using the chain.
G attachment:
The G attachments is a link plate having a hole at midpoint. The roller chains with G-type attachments are arranged wide in parallel, using pins or bars engaged in the mid point holes.(NOTE: When used with the R-type roller chains, pay attension to sprockets)
Chain number：KCM C2040～C2120H, KCM C2042～C2122H
EP attachment:
Direct the EP attachments inward, make the two chains parallel, and attach the pipe and hardware to those attachments before using the chain.
G attachment:
The G attachments is a link plate having a hole at midpoint. The roller chains with G-type attachments are arranged wide in parallel, using pins or bars engaged in the mid point holes.(NOTE: When used with the R-type roller chains, pay attension to sprockets)
Chain number：KCM C2040～C2120H, KCM C2042～C2122H
Double-Pitch Roller Chain With Attachments (EP & G type)
Strengthen Stainless Steel (AS) Double-Pitch Roller Chain
To realize this product, the pins and rollers of SS chain have been replaced with those made of precipitation hardened stainless steel to improve its allowable load.
Its maximum allowable load is 1.5 times larger than SS chain. Please use this in case an SS chain will be short of allowable load.
Its corrosion-resistance is slightly lower than SS chain. Its operating temperature is -20ﾟC to +400ﾟC.
Note: This product has magnetism since it contains precipitation hardened stainless steel..
Chain number
Strengthened stainless steel double-pitch chains：KCM C2040 AS～C2080 AS
Its maximum allowable load is 1.5 times larger than SS chain. Please use this in case an SS chain will be short of allowable load.
Its corrosion-resistance is slightly lower than SS chain. Its operating temperature is -20ﾟC to +400ﾟC.
Note: This product has magnetism since it contains precipitation hardened stainless steel..
Chain number
Strengthened stainless steel double-pitch chains：KCM C2040 AS～C2080 AS
Strengthen Stainless Steel (AS) Double-Pitch Roller Chain
Double-Pitch Roller Chain With Side Rollers
R roller-type chains include resin and rubber tire as well as standard steel versions as for the side roller type. Please select according to the type of transported items and environmental conditions. There are two types of formation: 1P Alternate side type (zigzag type) and 2P Both side type (parallel type)
Chain number：C2040～C2120H, KCM C2042～C2122H
Chain number：C2040～C2120H, KCM C2042～C2122H
Double-Pitch Roller Chain With Side Rollers
Double-Pitch Roller Chain For Conveyor (DL)
In this double-pitch chain, the material of its R-type rollers has been replaced by resin (DL) so that its weight and operating noise can be reduced. In addition to standard version, nickel-plated and stainless steel versions are also available.
Chain number：KCM C2042 DL, C2052 DL, C2062 DL, C2062H DL, C2082 DL, C2082H DL, C2102H DL, C2122H DL
Chain number：KCM C2042 DL, C2052 DL, C2062 DL, C2062H DL, C2082 DL, C2082H DL, C2102H DL, C2122H DL
Double-Pitch Roller Chain For Conveyor (DL)
Roller Chain With Side Rollers
This free flow chain can transport or accumulate materials on the chain continuously running.
The standard roller chain is fitted with side rollers for free flow to quickly carry or accumulate materials on them. Returnline layout is also simple and compact. Side rollers made of steel, plastics and rubber are available. Select them according to the kinds of transferred goods.
There are two types of formation: 1P Alternate side type (zigzag type) and 2P Both side type (parallel type)
Chain number：KCM 40, 50, 60, 80
The standard roller chain is fitted with side rollers for free flow to quickly carry or accumulate materials on them. Returnline layout is also simple and compact. Side rollers made of steel, plastics and rubber are available. Select them according to the kinds of transferred goods.
There are two types of formation: 1P Alternate side type (zigzag type) and 2P Both side type (parallel type)
Chain number：KCM 40, 50, 60, 80
Roller Chain With Side Rollers
Double-Pitch Roller Chain With Attachments (A & K type)
This is a double-pitch roller chains with attachments precisely processed. This chain is suitable to use for high precision transmission for a small conveyor.
Standard attachment：
A-1 attachment・K-1 attachment・SA-1 attachment・SK-1 attachment
Chain number：KCM C2040～C2120H, KCM C2042～C2122H
Standard attachment：
A-1 attachment・K-1 attachment・SA-1 attachment・SK-1 attachment
Chain number：KCM C2040～C2120H, KCM C2042～C2122H
Double-Pitch Roller Chain With Attachments (A & K type)
Top Plate Snap-On Chain
Only installing an resin attachment can make it possible to use this as a Scott conveyor. With a structure that can be transversely bent, SUS type can achieve a curved traveling.
Note: The extent of back bending is limited. Pay attention to the design of the return section.
Chain number
SU type：For straight transportation：KCM 40SU, 60SU
SUC type：For curved transportation：KCM 60SUC
Note: The extent of back bending is limited. Pay attention to the design of the return section.
Chain number
SU type：For straight transportation：KCM 40SU, 60SU
SUC type：For curved transportation：KCM 60SUC
Top Plate Snap-On Chain
